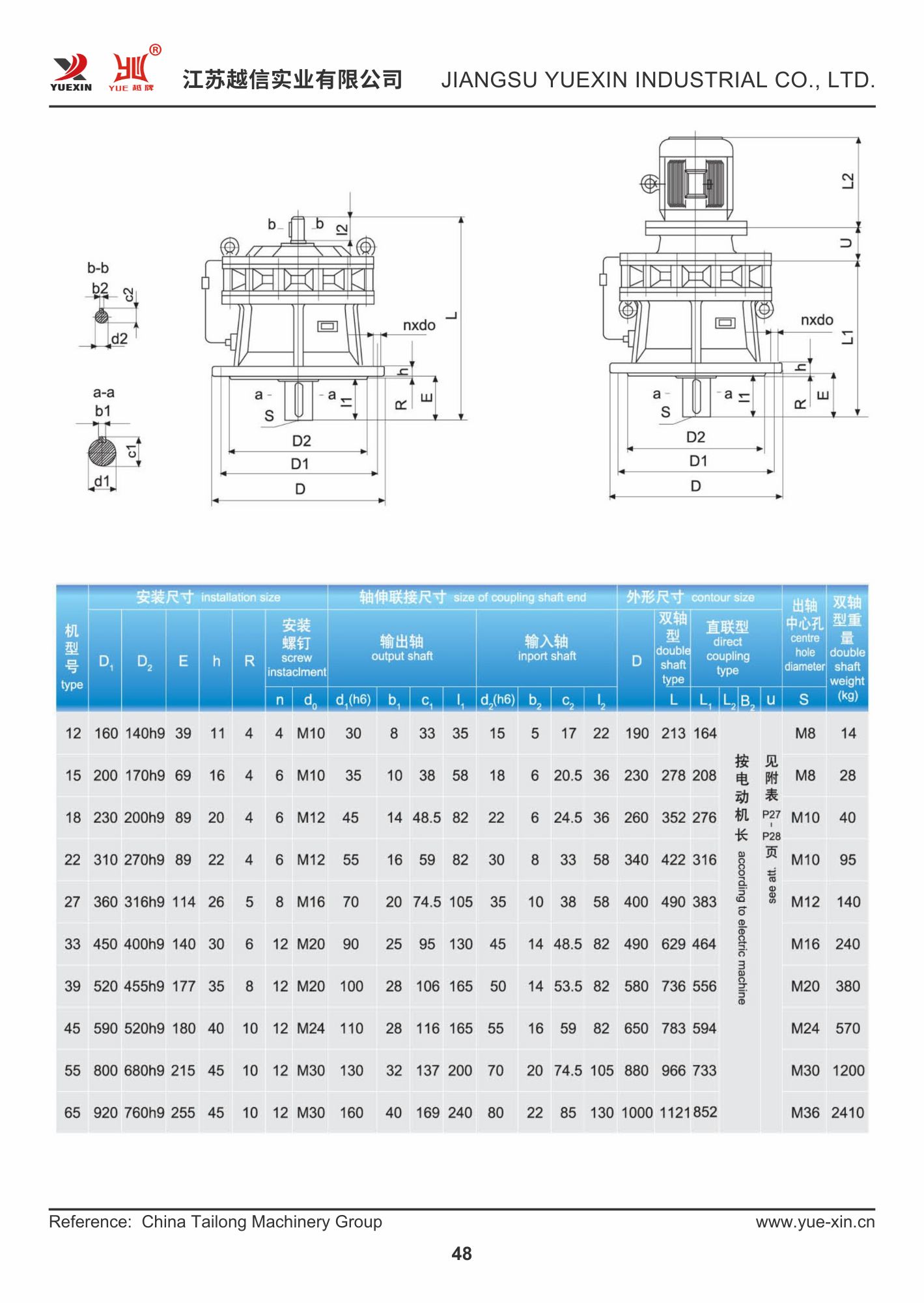

Reference: China Tailong Machinery Group
Brief:

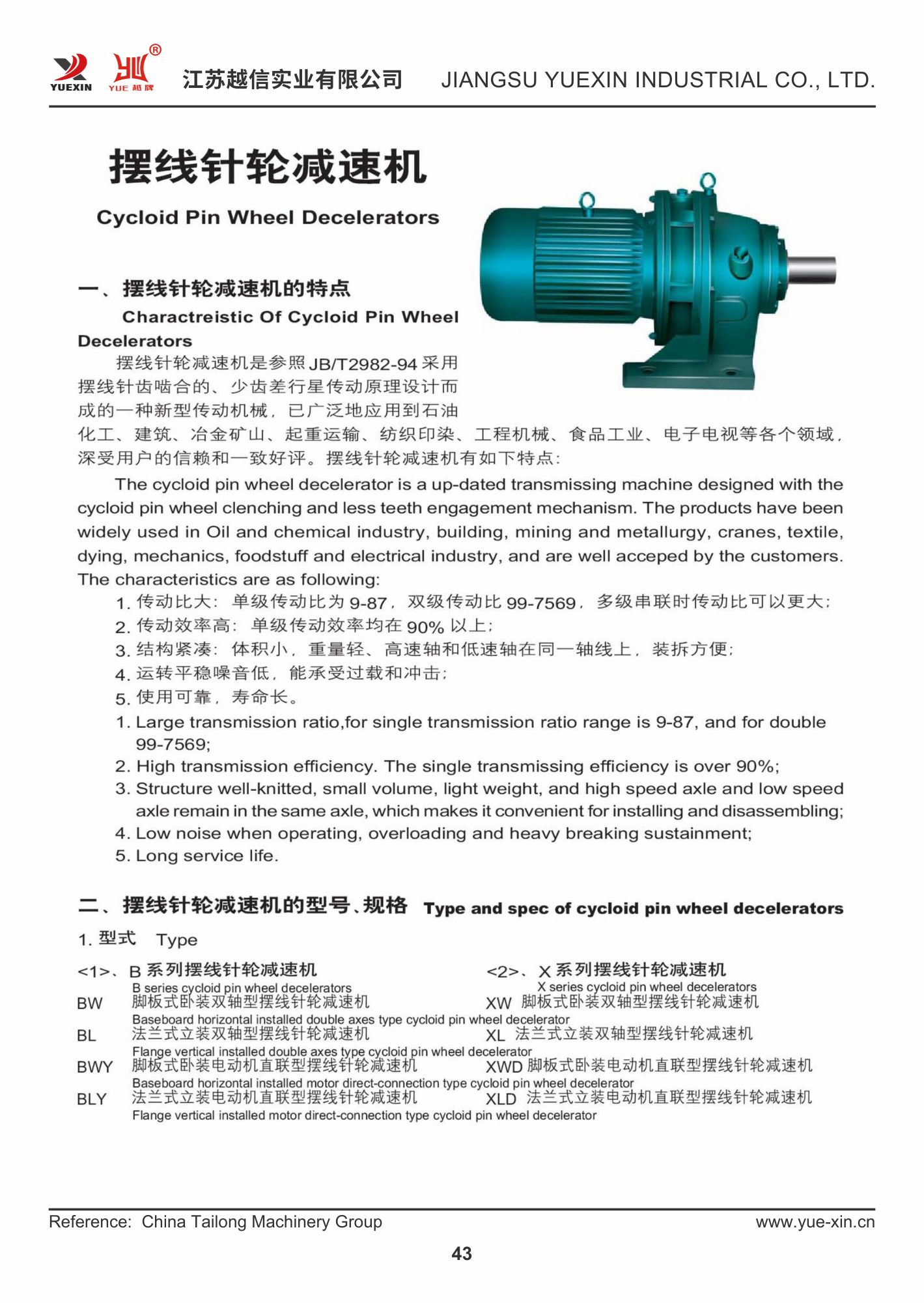

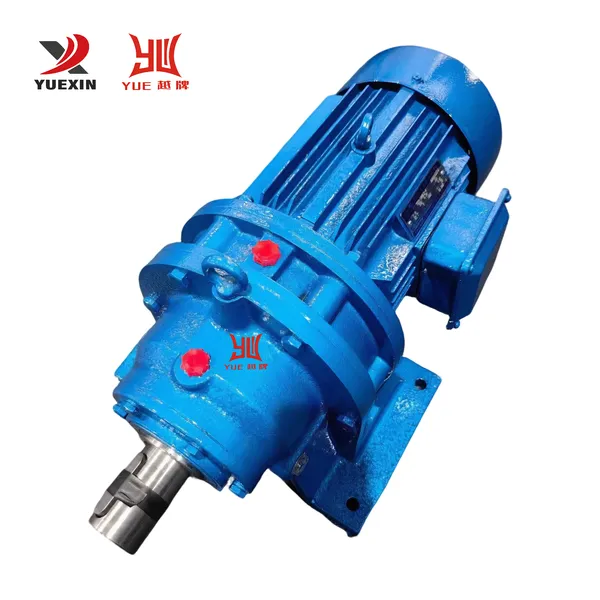

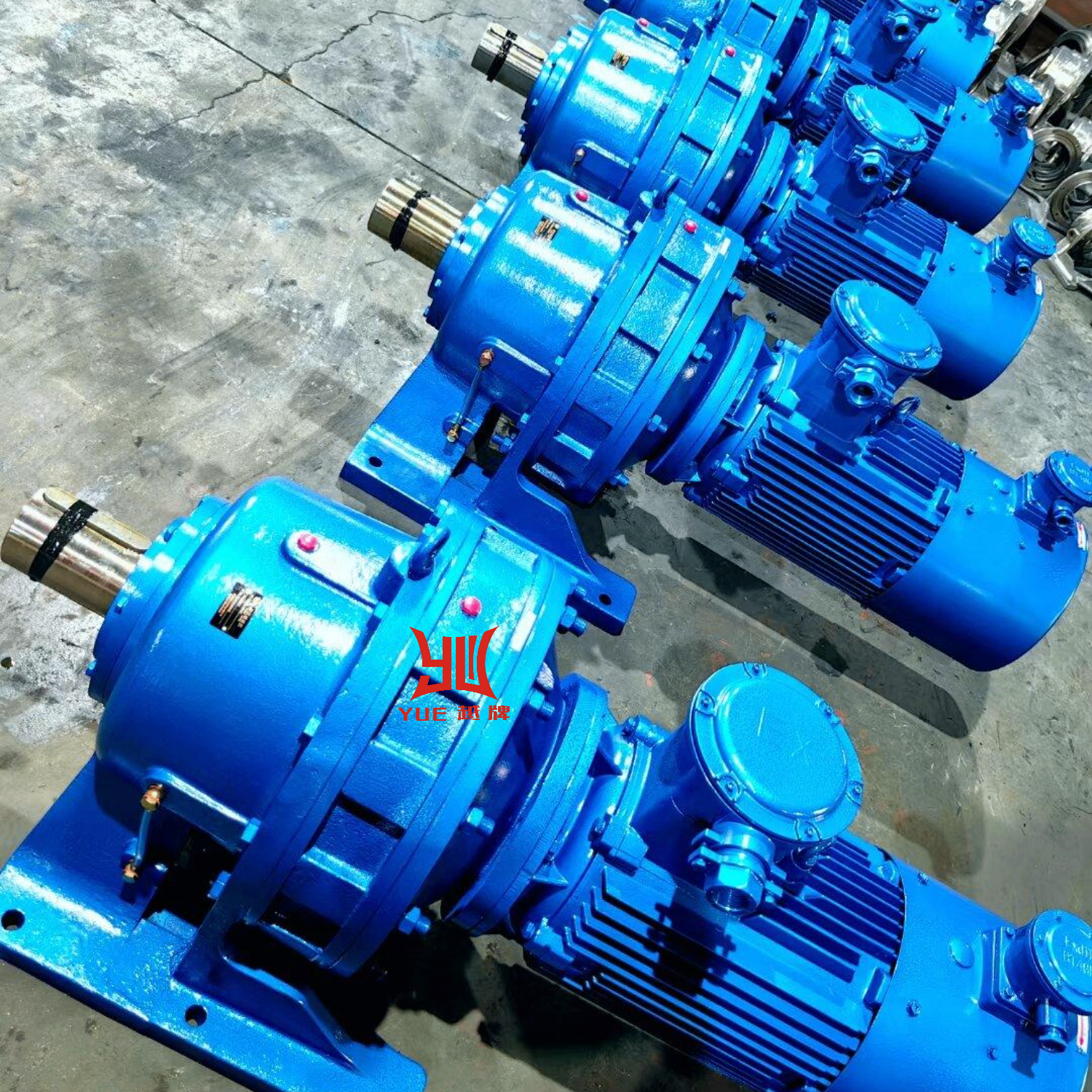

The cycloid pin wheel decelerator is a up-dated transmissing machine designed with the cycloid pin wheel clenching and less teeth ngagement mechanism. The products have been widely used in Oil and chemical industry, building, mining and metallurgy, cranes, textile dving, mechanics. foodstuff and electrical industry, and are well acceped by the customers The characteristics are as following:

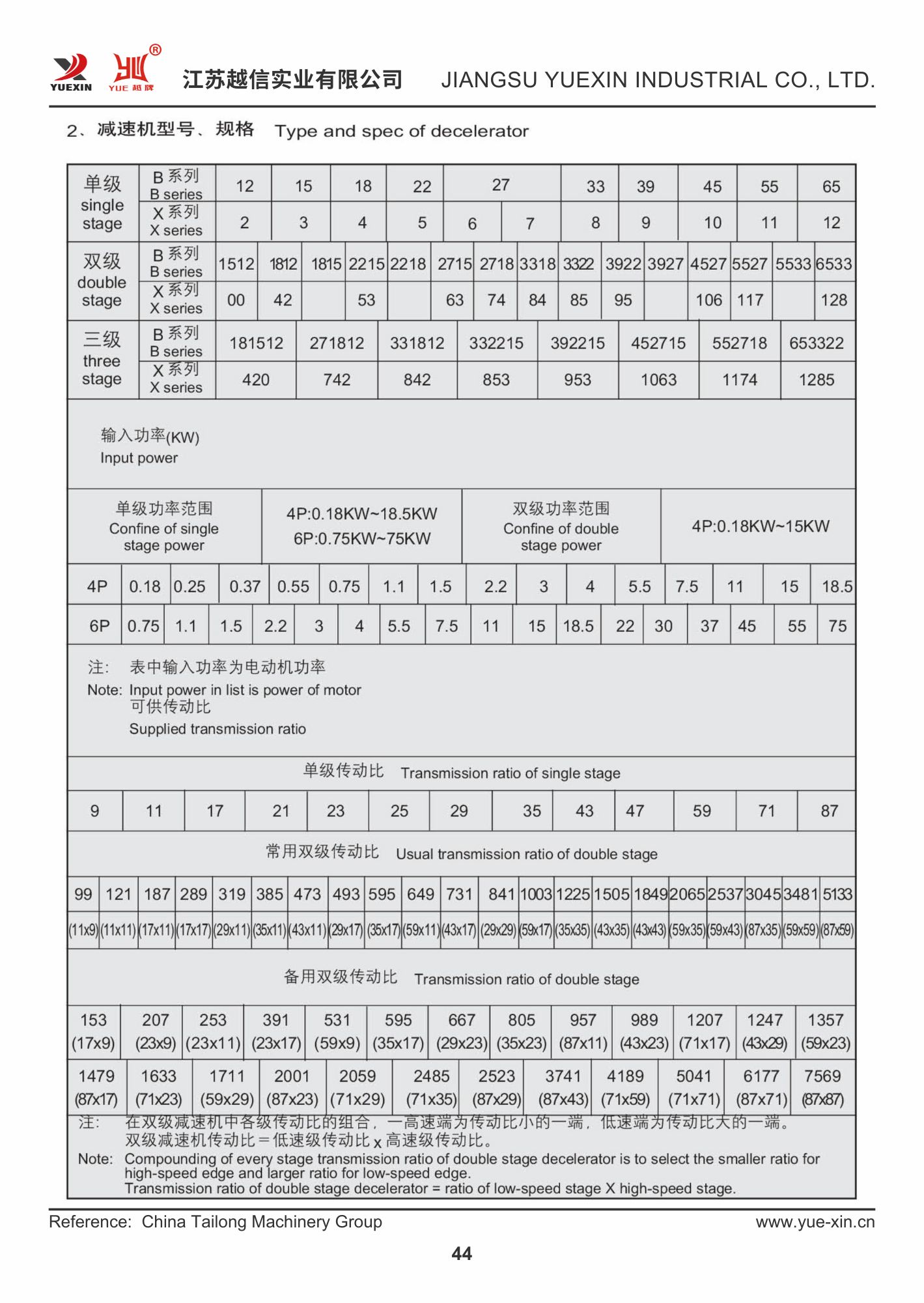

1. Large transmission ratio,for single transmission ratio range is 9-87, and for double 99-7569;
2. High transmission efficiency. The single transmissing efficiency is over 90%;
3. Structure well-knitted, small volume, light weight, and high speed axle and low speeo axle remain in the same axle, which makes it convenient for installing and disassembling;
4. Low noise when operating, overloading and heavy breaking sustainment;
5. Long service life.
