Reference: China Tailong Machinary Group
Brief:

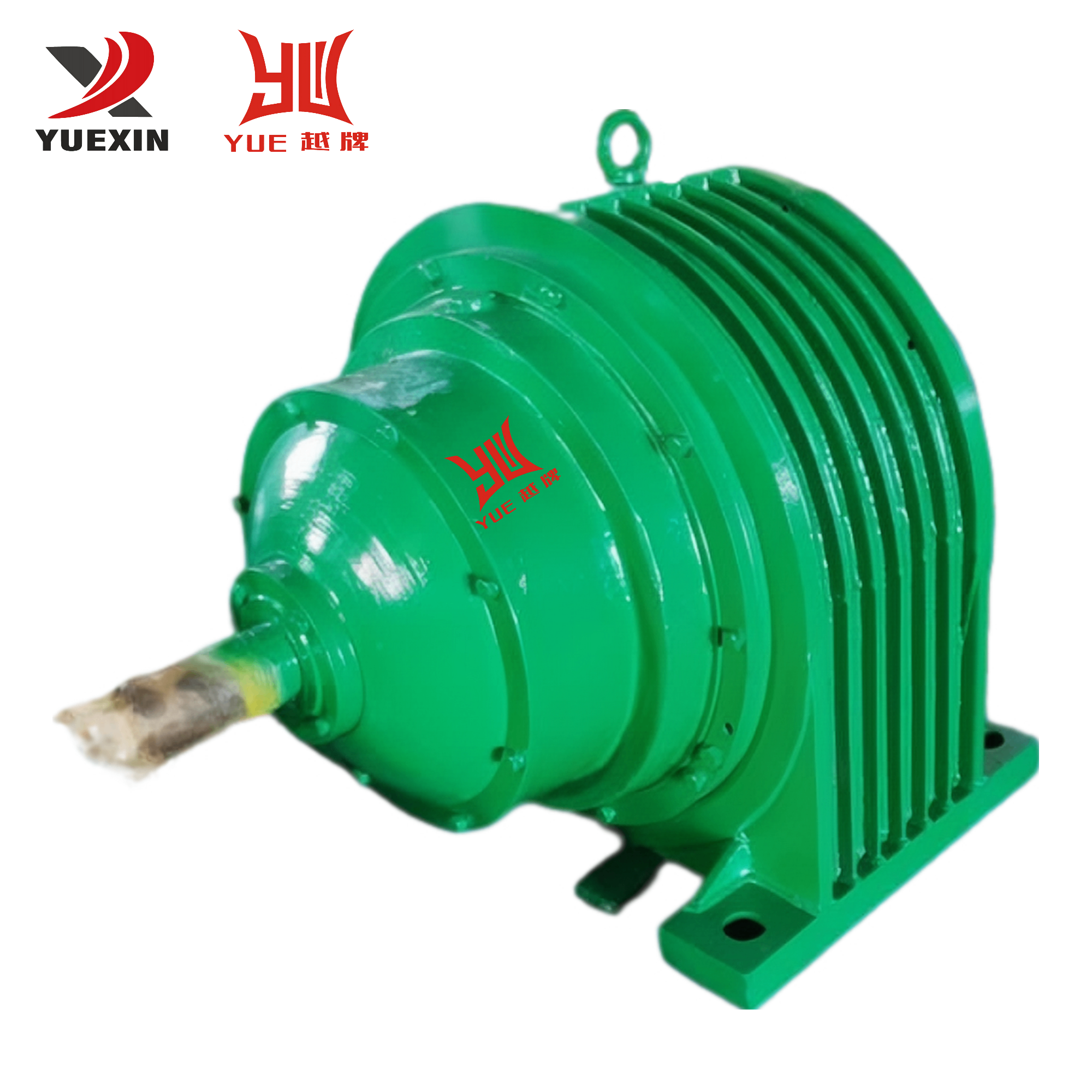

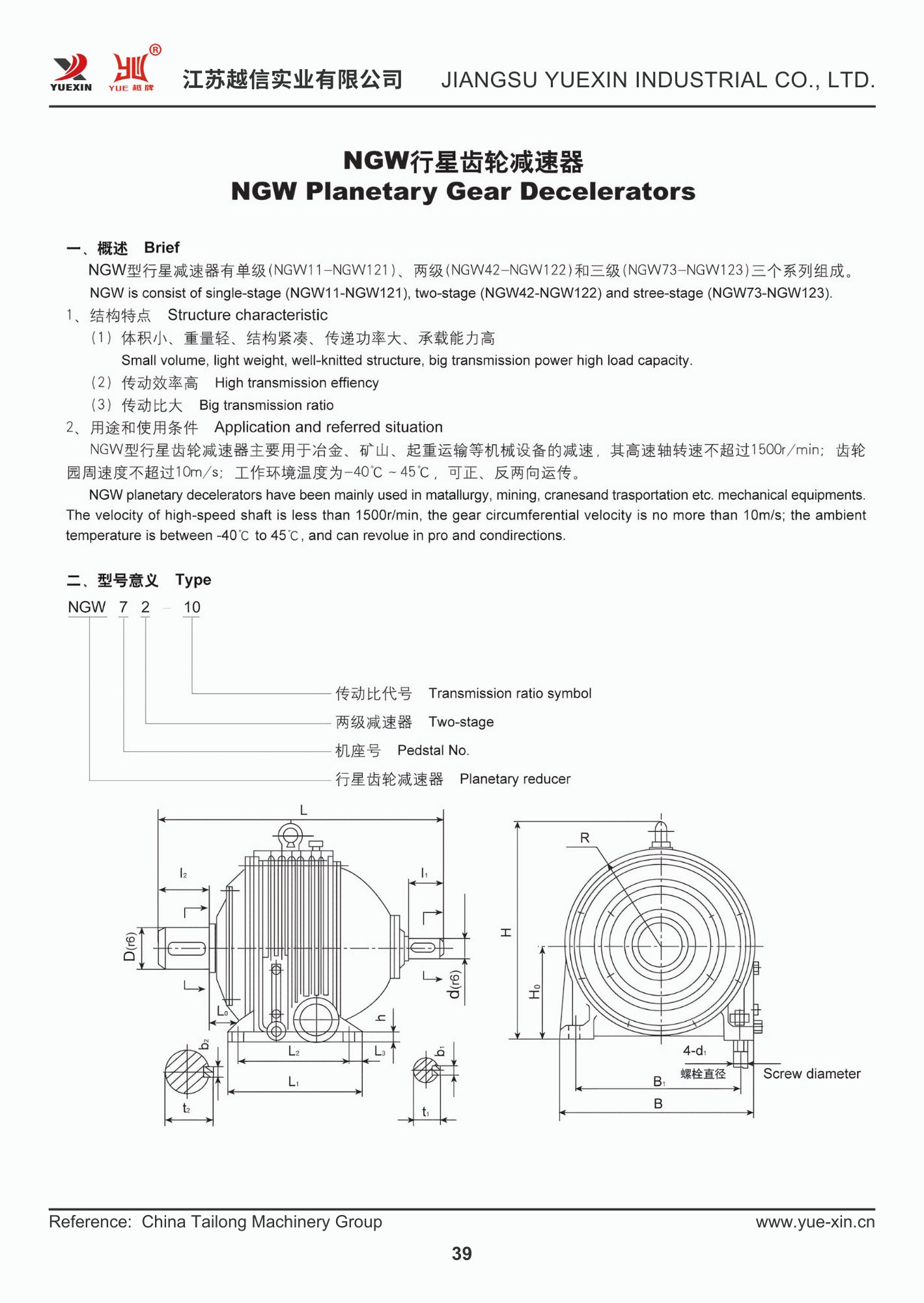

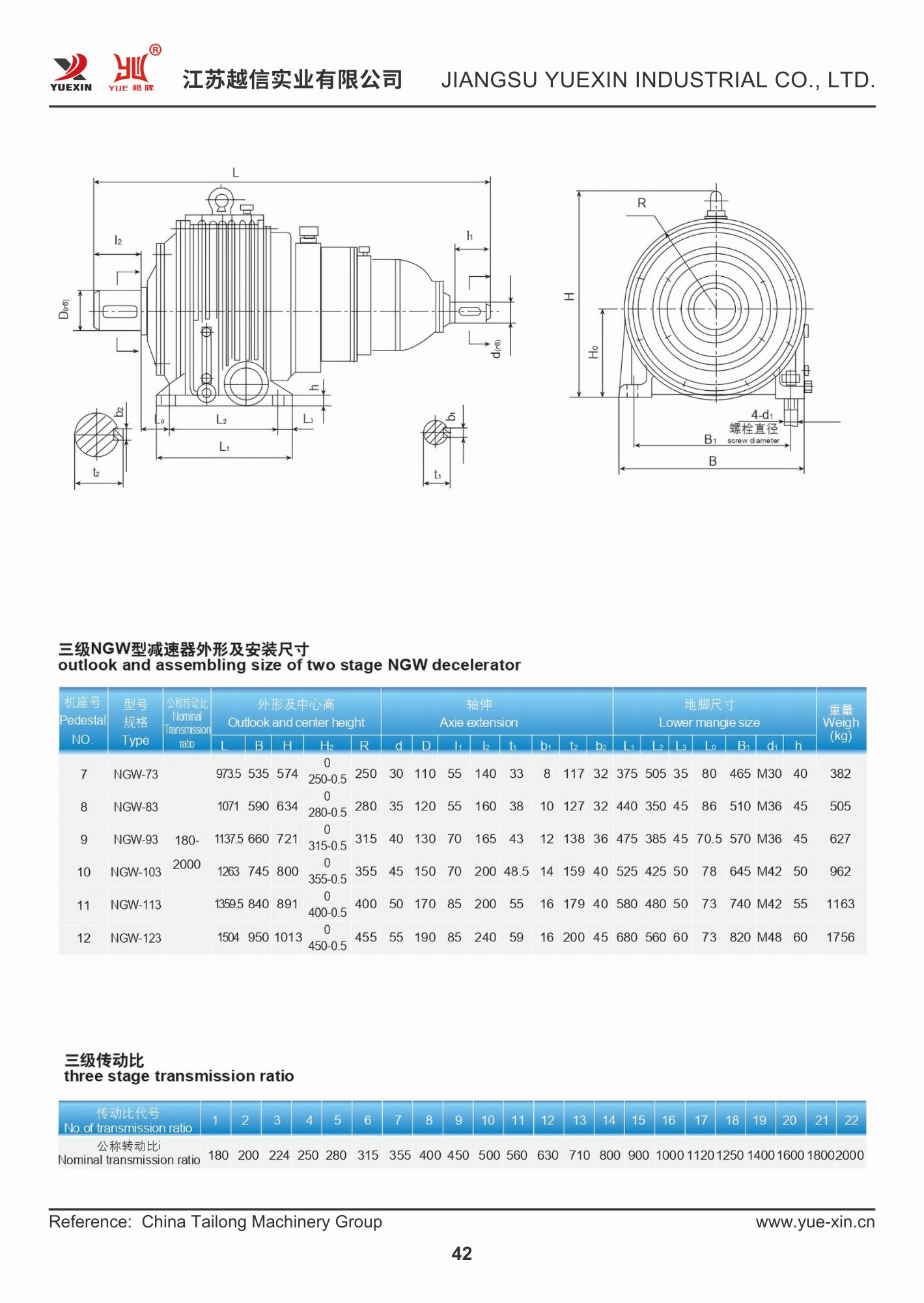

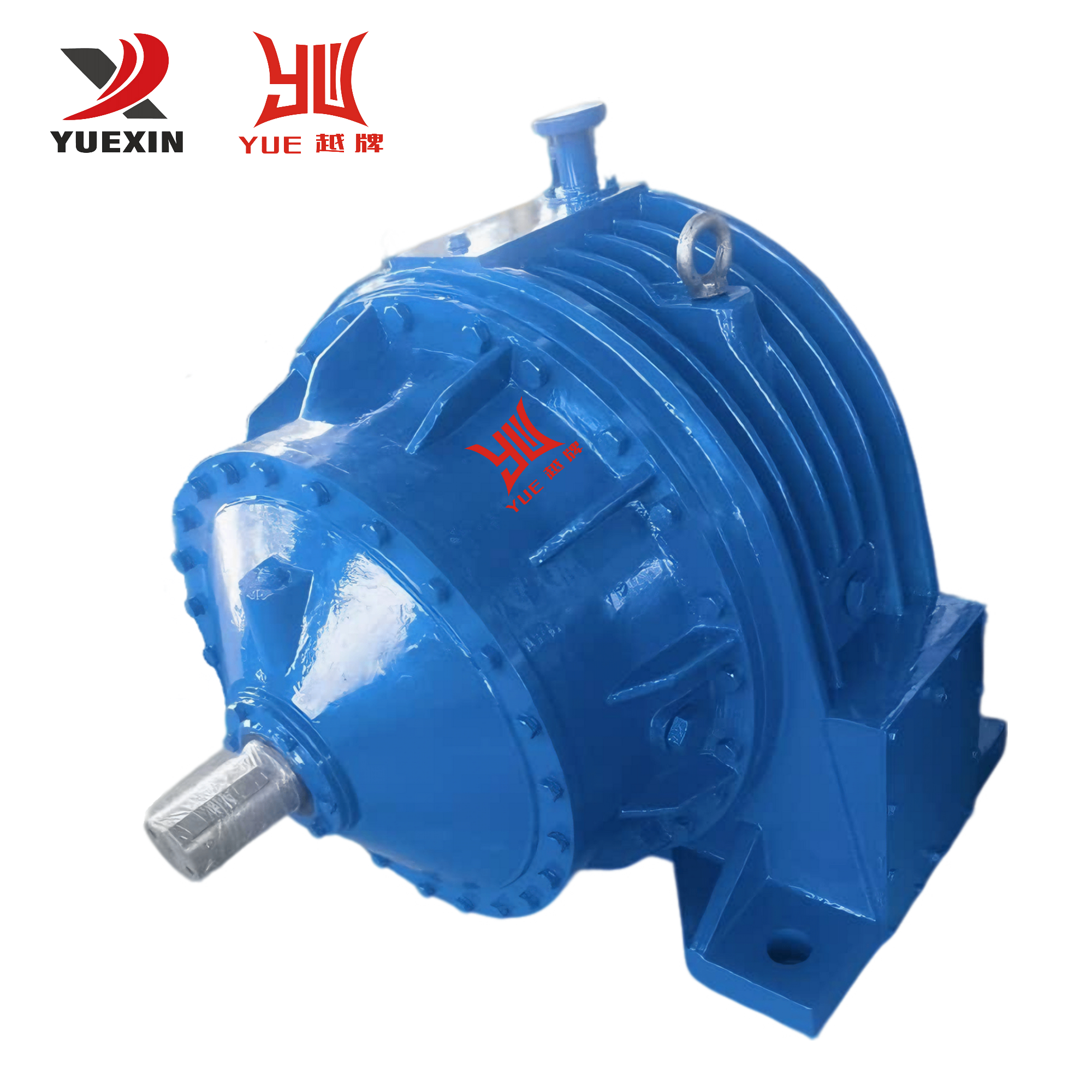

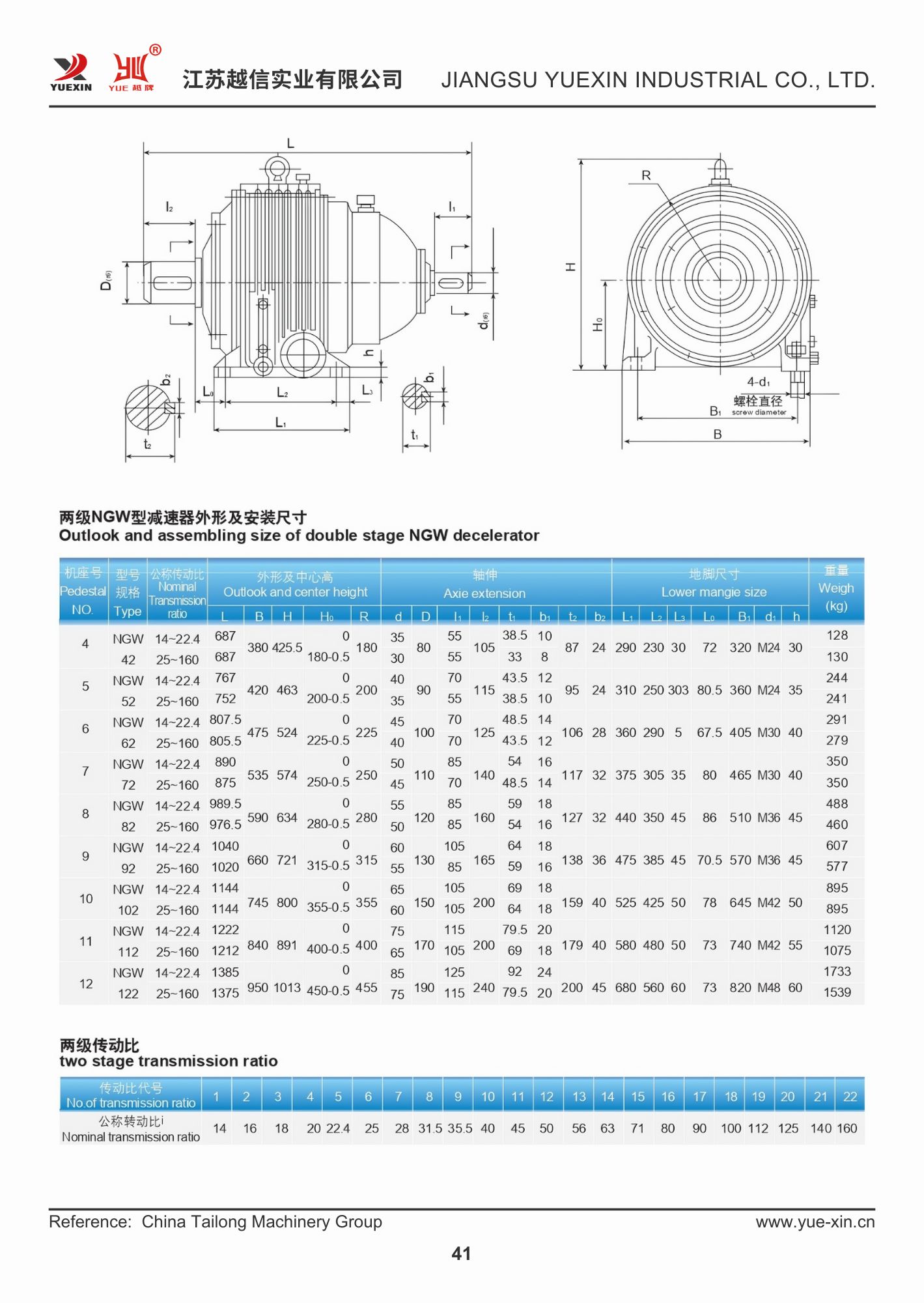

NGW Planetary is consist of single-stage (NGW11-NGW121), two-stage (NGW42-NGW122) and stree-stage (NGW73-NGW123).
1. Structure characteristic
(1）Small volume, light weight, well-knitted structure, big transmission power high load capacity
(2）High transmission eflency
(3）Big transmission ratio
2. Application and referred situation
NGW planetary decelerators have been mainly used in matallurgy, mining, cranesand trasportation etc. mechanical equipments. The velocity of high-speed shaft is less than 1500r/min, the gear circumferential velocity is no more than 10m/s; the ambien temperature is between -40'C to 45'C and can revolue in pro and condirection.
Specification:

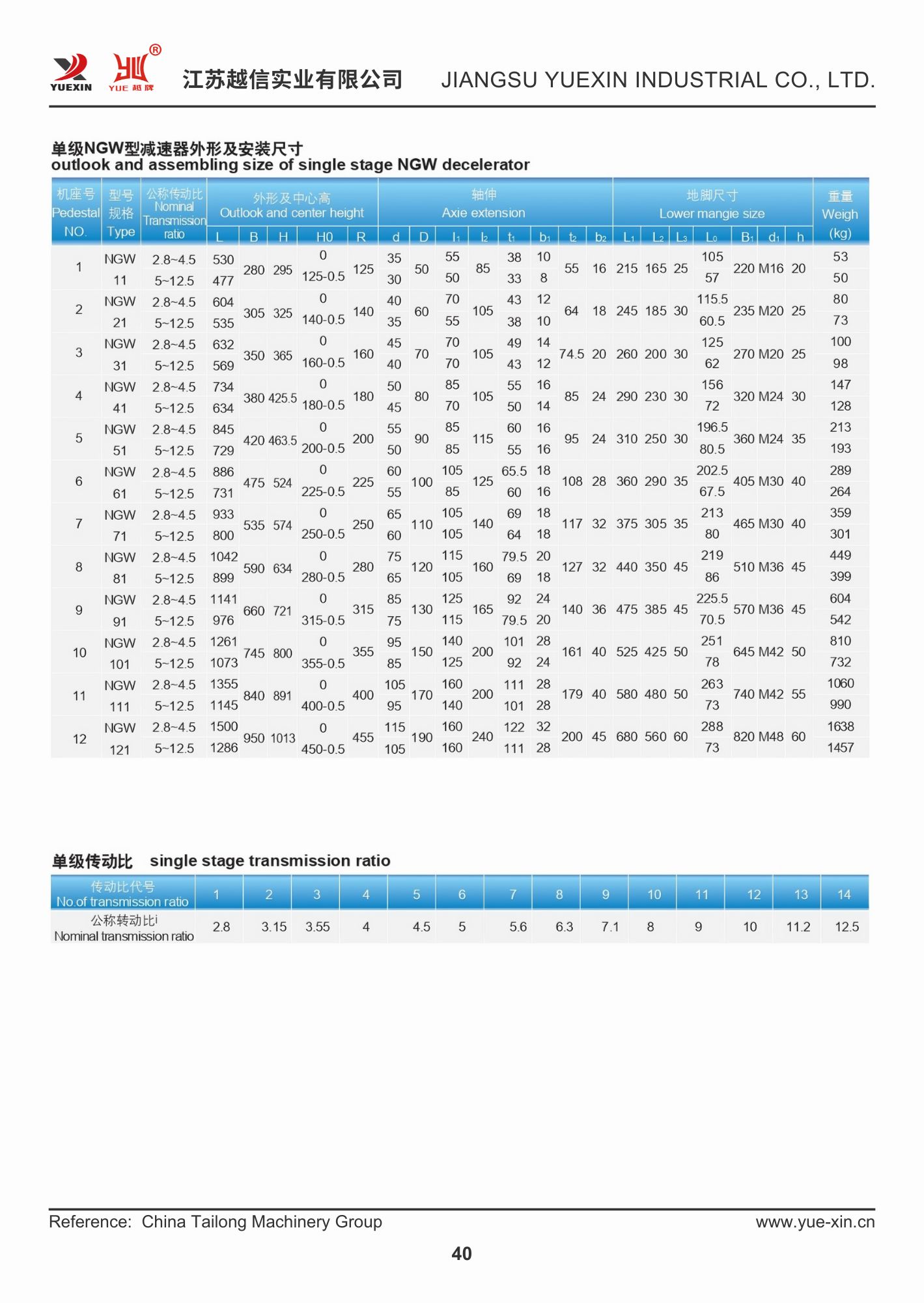

NGW11, NGW21, NGW31, NGW41, NGW51, NGW61, NGW71, NGW81, NGW91, NGW101, NGW111, NGW121
